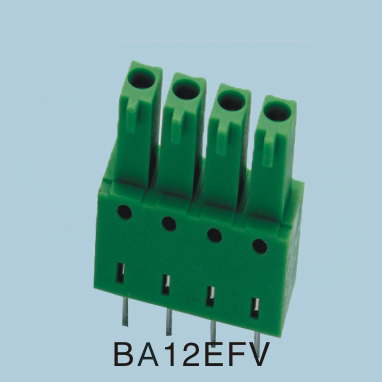

BA12EFV
Material and electroplating
Soldering pin: brass, tin plated
Plastic parts: PA66 UL94V-0
Electrical performance
Rated voltage: 300V
Rated current: 15A
Contact resistance: 20m ohm
Insulation resistance: 5000M ohm \1000V
Withstand voltage: AC1500V\1Min
Mechanical properties
Temperature range: -40 DEG to 105 DEG C
Instantaneous temperature: 250 5 seconds
